WTUPC – Water Tight Union Pouring Chamber

WTPC – Water Tight Pouring Chamber

<img width="500" height="500" src="https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-28.png" class="img-responsive wp-image-1396" srcset="https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-28-200x200.png 200w, https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-28-400x400.png 400w, https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-28.png 500w" sizes="(max-width: 640px) 100vw, 500px" />

Installation Guide

<img width="500" height="500" src="https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-29.png" class="img-responsive wp-image-1397" srcset="https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-29-200x200.png 200w, https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-29-400x400.png 400w, https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-29.png 500w" sizes="(max-width: 640px) 100vw, 500px" />

Installation Guide

<img width="500" height="500" src="https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-28.png" class="img-responsive wp-image-1396" srcset="https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-28-200x200.png 200w, https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-28-400x400.png 400w, https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-28.png 500w" sizes="(max-width: 640px) 100vw, 500px" />

Installation Guide

<img width="500" height="500" src="https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-29.png" class="img-responsive wp-image-1397" srcset="https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-29-200x200.png 200w, https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-29-400x400.png 400w, https://americanconnectors.com/wp-content/uploads/2020/09/Untitled-design-29.png 500w" sizes="(max-width: 640px) 100vw, 500px" />

Installation Guide

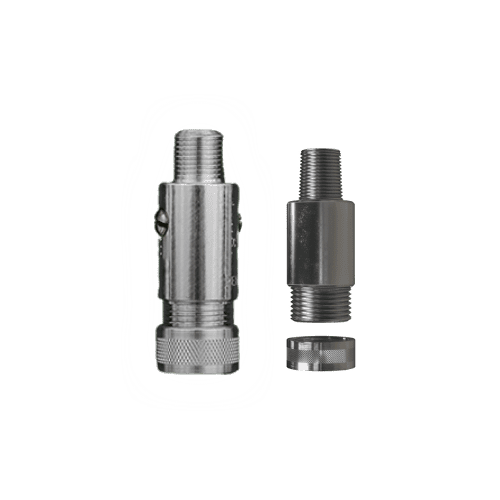

WTUPC
Water Tight Union Pouring Chamber

WTPC
Water Tight Pouring Chamber

Features

360° hand-tight grounding

Tested to 3X UL pullout requirements

Environmentally friendly materials

EZ Sealant System

Removable hub

Inspection port with EZ screw

Standard Stock: 6061 Aluminum

Special Materials: Brass, Stainless Steel

For Use

Metal Clad (MC/MC-HL Cable Teck)
Interlocked
CCW
Threaded Entrances for WTUPC
Non-Threaded Entrances for WTPC
Outdoor & Indoor Locations

Listings and Certifications

E107930

E150924

Class I, Div 1 & 2, Groups ABC&D

Class II, Div 1 & 2, Groups EF&G

Class III

UL 514B, 886, 2225

Class 1 Zone 1 & 2

Nema 4 & IP56

Nema 7 & 9 (UL 2225 Sec. 30.1)

Features

360° hand-tight grounding

Tested to 3X UL pullout requirements

Environmentally friendly materials

EZ Sealant System

Removable hub

Inspection port with EZ screw

Standard Stock: 6061 Aluminum

Special Materials: Brass, Stainless Steel

For Use

Metal Clad (MC/MC-HL Cable Teck)
Interlocked
CCW
Threaded Entrances for WTUPC
Non-Threaded Entrances for WTPC
Outdoor & Indoor Locations

Listings and Certifications

E107930

E150924

Class I, Div 1 & 2, Groups ABC&D

Class II, Div 1 & 2, Groups EF&G

Class III

UL 514B, 886, 2225

Class 1 Zone 1 & 2

Nema 4 & IP56

Nema 7 & 9 (UL 2225 Sec. 30.1)

EZ SEAL SYSTEM

3-5X Faster Potting vs. Spring-Style Connectors for Hazardous Locations
Environmentally Safe Two-Part Resin
Do Not Have to Mix Putty or Resin By
Hand, Contractors Love the “No Mess” Process
Inspection Sealant Ports with Brass Screws
Allows for Sealing After Connection
Can Inspect Without Disconnecting Lead Wires

<img width="485" height="247" src="https://americanconnectors.com/wp-content/uploads/2020/09/gun_2x-1.png" class="img-responsive wp-image-1414" srcset="https://americanconnectors.com/wp-content/uploads/2020/09/gun_2x-1-200x102.png 200w, https://americanconnectors.com/wp-content/uploads/2020/09/gun_2x-1-400x204.png 400w, https://americanconnectors.com/wp-content/uploads/2020/09/gun_2x-1.png 485w" sizes="(max-width: 640px) 100vw, 485px" />

EZ Seal System

3-5X Faster Potting vs. Spring-Style Connectors for Hazardous Locations
Environmentally Safe Two-Part Resin
Do Not Have to Mix Putty or Resin By
Hand, Contractors Love the “No Mess” Process
Inspection Sealant Ports with Brass Screws
Allows for Sealing After Connection
Can Inspect Without Disconnecting Lead Wires

<img width="485" height="247" src="https://americanconnectors.com/wp-content/uploads/2020/09/gun_2x-1.png" class="img-responsive wp-image-1414" srcset="https://americanconnectors.com/wp-content/uploads/2020/09/gun_2x-1-200x102.png 200w, https://americanconnectors.com/wp-content/uploads/2020/09/gun_2x-1-400x204.png 400w, https://americanconnectors.com/wp-content/uploads/2020/09/gun_2x-1.png 485w" sizes="(max-width: 640px) 100vw, 485px" />

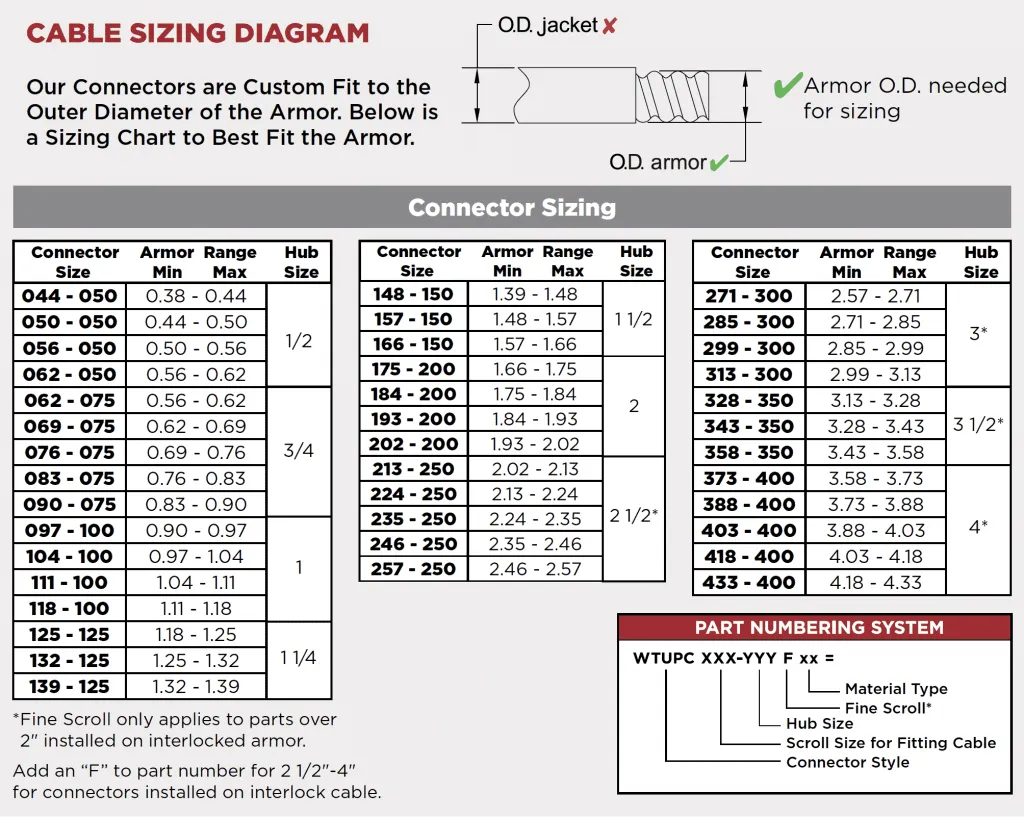

Sizing Chart

Markings

Diagrams

<img class="size-full wp-image-1435 alignleft" src="https://americanconnectors.com/wp-content/uploads/2021/01/capture_2x.jpg" alt="" width="425" height="577" />

<img class="size-full wp-image-1436 alignleft" src="https://americanconnectors.com/wp-content/uploads/2021/01/capture4_2x.jpg" alt="" width="380" height="488" />

Documents

PDF DOWNLOADS

DOWNLOAD PDF SPEC SHEET – WTUPC

DOWNLOAD PDF SPEC SHEET – WTPC

AMERICAN CONNECTORS BROCHURE

CONNECTORS PACKAGE

EZ SEALANT SPEC SHEET

DOWNLOAD PDF SPEC SHEET – NWT

DOWNLOAD PDF SPEC SHEET – NWTU

DOWNLOAD PDF SPEC SHEET – WT

DOWNLOAD PDF SPEC SHEET – WTU

DOWNLOAD PDF EARTH TAG

Sizing Chart & Resources

<img class="size-full wp-image-1435 alignleft" src="https://americanconnectors.com/wp-content/uploads/2021/01/capture_2x.jpg" alt="" width="425" height="577" />

<img class="size-full wp-image-1436 alignleft" src="https://americanconnectors.com/wp-content/uploads/2021/01/capture4_2x.jpg" alt="" width="380" height="488" />

PDF DOWNLOADS

DOWNLOAD PDF SPEC SHEET – WTUPC

DOWNLOAD PDF SPEC SHEET – WTPC

AMERICAN CONNECTORS BROCHURE

CONNECTORS PACKAGE

EZ SEALANT SPEC SHEET

DOWNLOAD PDF SPEC SHEET – NWT

DOWNLOAD PDF SPEC SHEET – NWTU

DOWNLOAD PDF SPEC SHEET – WT

DOWNLOAD PDF SPEC SHEET – WTU

DOWNLOAD PDF EARTH TAG
